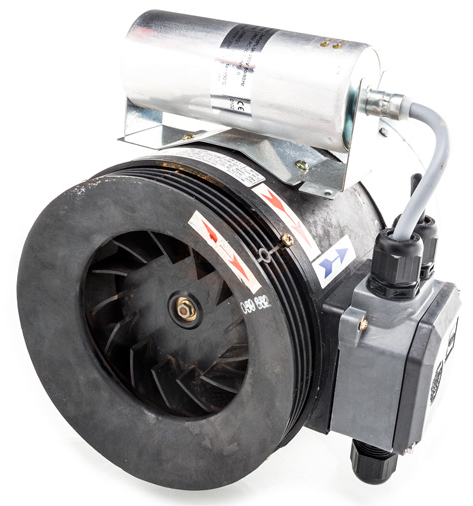

Helios RRK 250Ex Exproof Fan
65.056,01 TL
| RRK 250 EX |
| CENTRIFUGAL IN-LINE DUCT FAN 1 PH, EXPLOSION PROOF SPIGOT DIA. 180 MM |
Centrifugal fan specially designed to be installed in-line in circular ducting. Highly efficient backward curved centrifugal impeller made from polymers. Dynamially balanced to class G 6.3 DIN and ISO 1940 T.1. Totally enclosed, single phase condenser motor with low-noise, sealed for life ball bearings, tropical protection of windings, maintenance free and radio suppressed. |
Katolog için tıklayınız
| Ref.no. | 5891 |
| Model | RRK 250 EX |
| Description | CENTRIFUGAL IN-LINE DUCT FAN 1 PH, EXPLOSION PROOF SPIGOT DIA. 250 MM |
| Actual pressure | static |
| Actual volume | |
| Max.Vol. | 1000 m³/h |
| Speed | 2860 min-1 |
| FLC un-controlled | 1.40 A |
| STC un-controlled | 5.18 A |
| Power | 0.30 kW |
| Voltage | 230 V / 1 ph / 50 Hz |
| Schutzart IP | 54 |
| Max. temp. | 50 °C |
| Wiring diagram no. | 453 |
| Weight | 7.90 kg |
| Delivery time | Ex stock |
